Our tractor factory produces mini tractor with different horsepower, such as 25HP, 30HP, 40HP, 50HP, 60HP, 70HP, 80HP, 90HP and 100HP mini tractor etc.

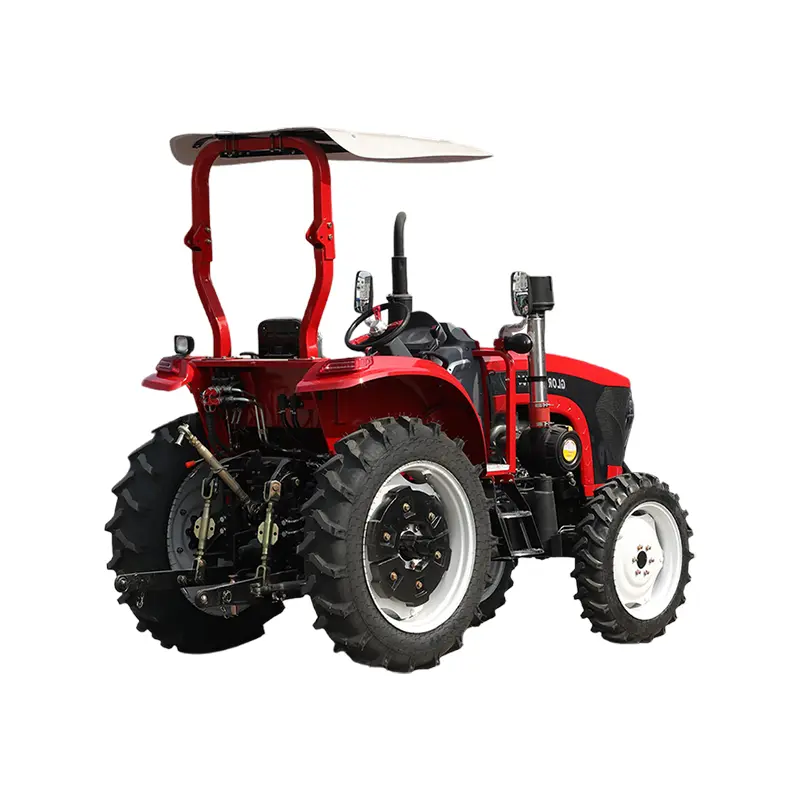

This compact tractor can be chosen from three styles: anti-rollover frame, sunshade and cab. And this one is very suitable for small terrain agricultural operations. Because it’s with a compact structure, small turning radius of the work of flexible characteristics. And this compact tractor has First-class streamlined hood design.
The mini tractor also can be used as a lawn tractor, and it can be matched with a lawn mower for you to trim and take care of the lawn. To achieve a multi-purpose, it has been the customer's first choice for lawn tractor.
Perfect after-sales service system will ensure our users have no worries.
Product Advantage

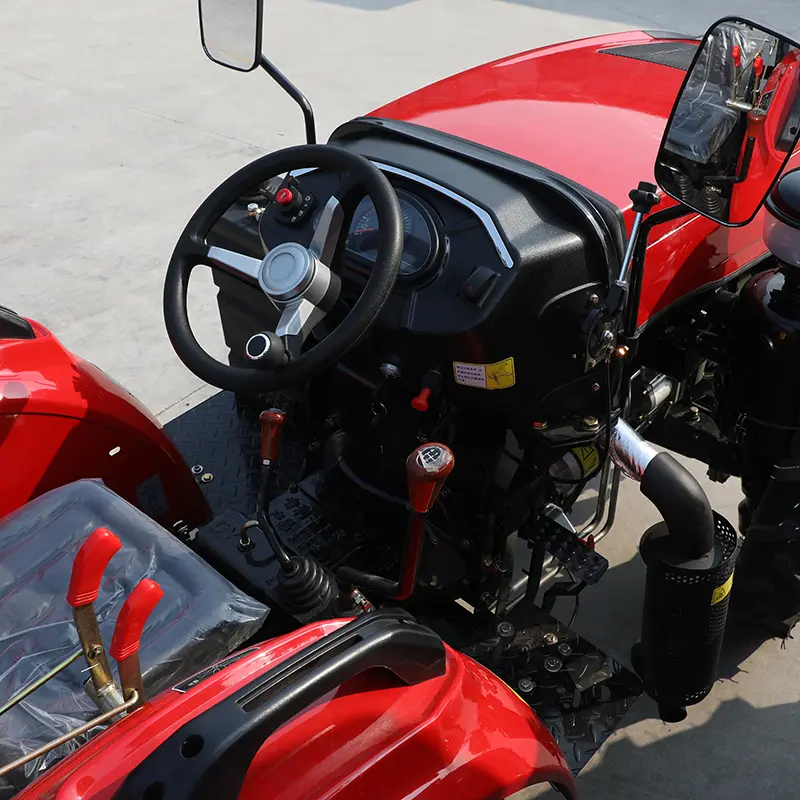

1.Cab: Our mini tractor cab has very wide view and no dead corners. Super quiet and comfortable.
2.Engine: Torque and low fuel consumption. Laidong brand is high reliability.
3.Axle: This compact tractor’s wheelbase is small. And it has high flexibility and convenient operation. It can achieve small turning radius .
4.Gearbox: Using 8 + 2 gear, optional shuttle shift 8 + 8 gear.
5.Lighting system upgrade: This mini tractor is equipped with LED lights which has the advantages of energy saving and long service life, which makes mini tractor work more efficiently in the night for customers.
Product Parameters
| 25HP TY Farm Tractor | |
| Product model | GL254-TY |
| Overall dimensions (mm) | 3640×1530×2530 |
| Wheelbase (mm) | 1860 |
| Minimum usable mass (kg) | 1550(safety rack)/1700(cab) |
| Minimum ground clearance (mm) | 330 |
| Engine emissions | National Second Engine |
| Engine brand | Laidong KM385Z |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 18.4 |
| Engine calibration speed (r/min) | 2400 |
| Clutch type | 10 inch Single acting clutch, dry clutch |
| Number of gears in the gearbox | 8+2(optional 8+8) |
| Axle | TY |
| Tire specifications | 6.0-16/9.5-24 |
| Power output speed (r/min) | 540/720 |

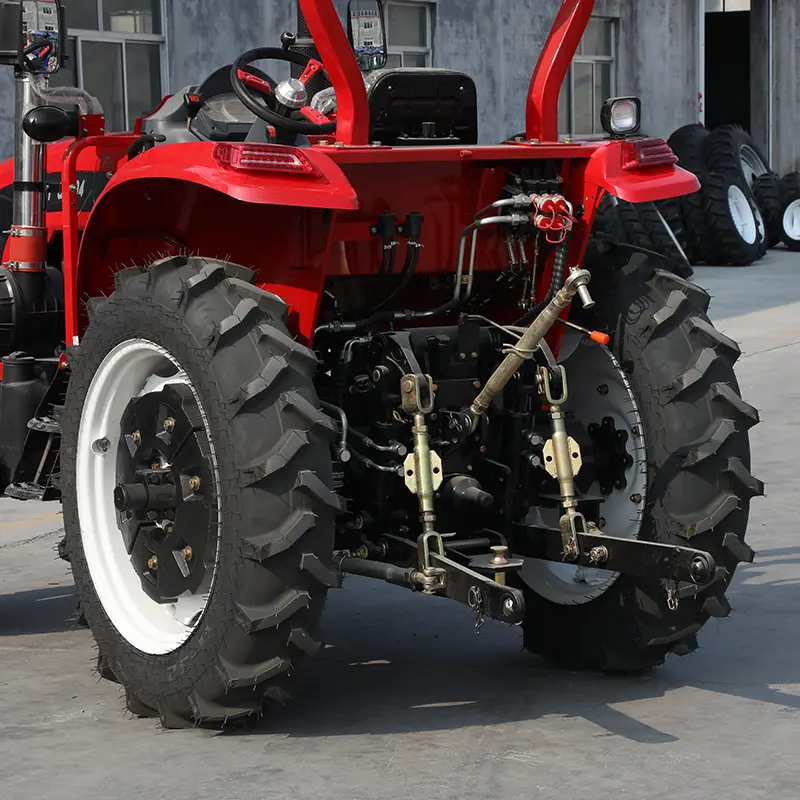

| Hydraulic lifting system type | Strong pressure dual oil cylinder |
| Maximum lifting force (KN) | ≥6.88 |
| Traction force (KN) | ≥8.68 |
